Switching power supply/Alimentatore switching/ Alimentation à découpage/ Schaltnetzteil/ Fuente de alimentación conmutada/ Kapcsolóüzemű tápegység/ Kytkentävirtalähteellä/Comutatie de alimentare/Импульсный блок питания

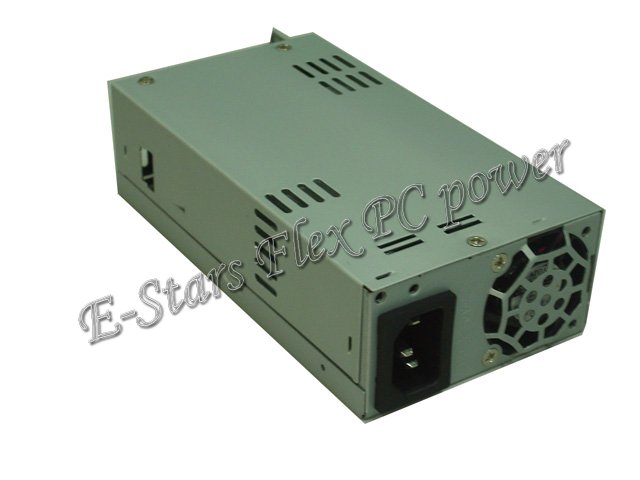

Model: ENP-7022 220W
FLEX/ATX/MINI/MICRO POWER SUPPLY, POWER SUPPLIES, China Supplier
- Features
- 80PLUS Bronze High Efficiency > 82 %
- Input Voltage 90 – 264 VAC Input Frequency 47 – 63 Hz
- Suitable for 1U/TFX/Flex-ATX Form-Factor
- Active PFC
- Universal AC Input Voltage
- Ultra Quiet Fan Speed Control Design
- Low Acoustic Noise
- Support Intel Core 2 & Quad Core CPUs.
- Multiple Protection( OPP/OVP/UVP/OCP/OTP/SCP)
- High Quality Capacitors
- High Reliability MTBF> 100,000 at 25 Degree Celsius
DC Output
Model |
Total Output |
Combined +3.3V&+5V |
+3.3V |
+5V |
12V1 |
12V2 |
-12V |
+5VSB |
ENP-7015 |
150W |
70W |
10.0A |
12.0A |
10.0A |
10.0A |
0.3A |
2.0A |
ENP-7018 |
180W |
80W |
13.0A |
14.0A |
12.0A |
12.0A |
0.3A |
2.0A |
ENP-7020 |
200W |
80W |
13.0A |
14.0A |
14.0A |
14.0A |
0.3A |
2.0A |
ENP-7022 |
220W |
80W |
13.0A |
14.0A |
16.0A |
16.0A |
0.3A |
2.0A |
ENP-7025 |
250W |
80W |
13.0A |
14.0A |
18.0A |
18.0A |
0.3A |
2.0A |
ENP-7027 |
275W |
80W |
14.0A |
15.0A |
20.0A |
20.0A |
0.3A |
2.0A |
- Mechanical Dimension
- § TYPE=B,C,D,E,F
- B=W x L x H = 81.5 x 150 x 40.5 mm
- C=W x L x H = 82 x 150 x 43 mm
- D=W x L x H = 100 x 180 x 40.5 mm
- E=W x L x H = 85 x 175 x 65 mm
- F=W x L x H = 82 x 150 x 63 mm
Connector Options
|
